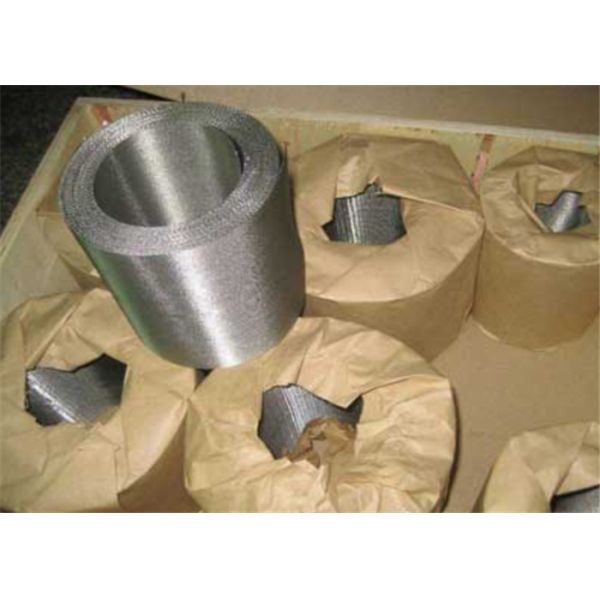

Filter Belts For Continuous Screen Changers
Filter Belts For Continuous Screen Changers Description
stainless steel 133MM WIDTH Automatic Continous Belt Screen Filter Mesh-----for Single or Twin Screw Extruder
Length noremally have 10M 20M
132x17 mesh -one type famouse screen changer belt mesh
the market need a lot of , we have some stock .
High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry for PP, PE, ABS, PS, PMMA and other materials.
Stainless Steel Reverse Plain Dutch Weave Wire Mesh (RPD) is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.
Filter Belts For Continuous Screen Changers Detailed Specifications
Material: Stainless steel 302, 304, 304L, 316, 316L or copper wires
Roll Width: 67mm, 95mm, 97mm, 127mm, 133mm, 150mm, 157mm, 300mm, 400mm, etc.
Roll Length: 10 meters or 20 meters as standard
The weaving stype we have reverse dutch plain and twill . Normally the belt we adopt is reverse dutch twill weave ( RDTW or TDRW ) is similiar weaving to dutch weave except the warp and weft wire are reversed .The warp wire is smaller and closely spaced than the weft wire which is relatively is bigger .
| Mesh Count |
Wire Diameter (mm) |
Width (cm) |
Weight (kg/m²) |
| 170 x 17 |
0.27 x 0.45 |
9-40 |
4.00 |
| 120 x 15 |
0.35 x 0.45 |
9-40 |
4.30 |
| 150 x 17 |
0.30 x 0.45 |
9-40 |
4.20 |
| 260 x 40 |
0.15 x 0.25 |
9-40 |
2.00 |
| 200 x 40 |
0.17 x 0.27 |
9-40 |
2.10 |
| 180 x 18 |
0.27 x 0.45 |
9-40 |
4.00 |
| 132 x 17 |
0.32 x 0.45 |
9-40 |
4.20 |
| 152 x 24 |
0.27 x 0.40 |
9-40 |
3.80 |
| 72 x 15 |
0.45 x 0.55 |
9-40 |
5.00 |
Filter Belts For Continuous Screen Changers Standard Specs
- 48x10 mesh RDPW 400 nominal micron
- 72x15 mesh RDTW 250 nominal micron
- 132x16 mesh RDTW 200 nominal micron
- 152x30 mesh RDTW 115 nominal micron
- 250x40 mesh RDTW 75 nominal micron
Filter Belts For Continuous Screen Changers Characteristics
- Fine workmanship with smooth surface finish
- High hardness and structural integrity
- Uninterrupted weave pattern
- Long-term dimensional stability with no deformation
- High temperature resistance
- Excellent corrosion resistance
- Superior filtering performance
- Easy installation and maintenance
Filter Belts For Continuous Screen Changers Applications
- widely used in continuous screen changers. (automatic screen changers).
- Filter candles, vacuum filters and spring filters(as filter media in filtration process )
- Major in Plastic Extrusion,Melt Filtration and other plastic industry Filed for PP,PS,PVC,ABS,PE,PET etc.
Filter Belts For Continuous Screen Changers RFQ
A : Do you have stock or not ?
Yes , we have a lot of stock( 800rolls stock always ) ,fast delivery .
B: Do you accept small order -1 roll ?
Yes, surely , 1 roll is no problem for us .
C : Do you offer free sample for our testing ?
Yes , we surely offer free sample for your quality confirmation .
