Plain Weave Dutch Weave Screens Filter Mesh Disc For Recycle Plastic Pellets Machine

Brand Name : BM

Model Number : BM-SCREEN

Certification : CE,CCC

Place of Origin : China

MOQ : 3 Pieces

Price : $0.2-$3.6

Payment Terms : D/A, L/C, D/P, T/T, Western Union, ,paypal

Supply Ability : 5000Pcs Per Week

Delivery Time : 10-15 Days After Get The Deposite

Packaging Details : Water-Proof Plastic Film And Wooden Case

Material : SS,MS

Filtering rate : 12*64,24*110

Dia : 300Mm,250Mm,254Mm...

Mesh type : Plain Weave,Dutch Weave

Layers : Single Layer,Double Layer

Feature : Flexible Working

Application : Recycling Plastic Pellets

Sample : Would Be Free

Shipping : By Sea,By Express

Main Marking : Europe,America,Australia,Asia,Africa

Spot Welded : Could As Client Request

Tooling : With Charge

Usage : Plastic Processing,Rubber Industry

Contact Now

Filter Screens/Filter Discs For Recycle Plastic Pellets Machine

Plain Weave Dutch Weave Screens Filter Mesh Disc For Recycle Plastic Pellets Machine

Category: Factory Wire Mesh Filter Discs/ Extruder Screen
BM Metal Mesh specializes in the design and manufacture of custom filters for recycle plastic pellet machine. Our staff will work with you to manufacture a filter that meets your specific application requirements.


Adhering to stringent quality control procedures we offer you state of the art equipment with robust design, reliability and tremendous performance. Our circular screen come with smooth screening surface with no sharp edges, burrs or acute angles, high durability, stable under tension and are uniformly cut by specifically developed power press, to avoid uneven edge. We assure to provide, circular screens which are customized resulting in absolute no wastage.

Wire Mesh Filter Discs/Extruder Screen
Product Specifications
STANDARD EXTRUDER SCREEN SPECIFICATION
MESH
WIRE DIA. MM
APERTURE SIZE MM
OPEN AREA
10 X 10
0.711
1.829 MM
51.8
14 X 14
0.457
1.357 MM
55.9
16 X 16
0.457
1.131 MM
50.7
20 X 20
0.559
0.711 MM
31.4
20 X 20
0.457
0.813 MM
41.0
24 X 24
0.376
0.682 MM
41.4
30 X 30
0.376
0.531 MM
34.2
30 X 30
0.310
0.536 MM
40.0
40 X 40
0.274
0.361 MM
32.3
50 X 50
0.193
0.335 MM
43.6
60 X 60
0.193
0.230 MM
29.8
80 X 80
0.122
0.196 MM
37.9
100 X 100
0.102
0.152 MM
36.0
120 X 120
0.091
0.120 MM
31.8
150 X 150
0.071
0.088 MM
29.6
200 X 200
0.050
0.077 MM
36.76
250 X 250
0.040
0.062 MM
36.76
300 X 300
0.040
0.045 MM
27.83
325 X 325
0.035
0.043 MM
30.49
400 X 400
0.028
0.036 MM
31.25
500 X 500
0.025
0.026 MM
25.79

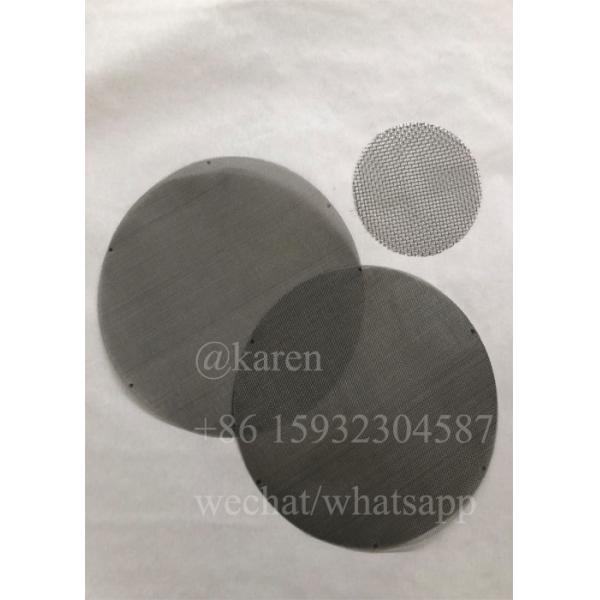

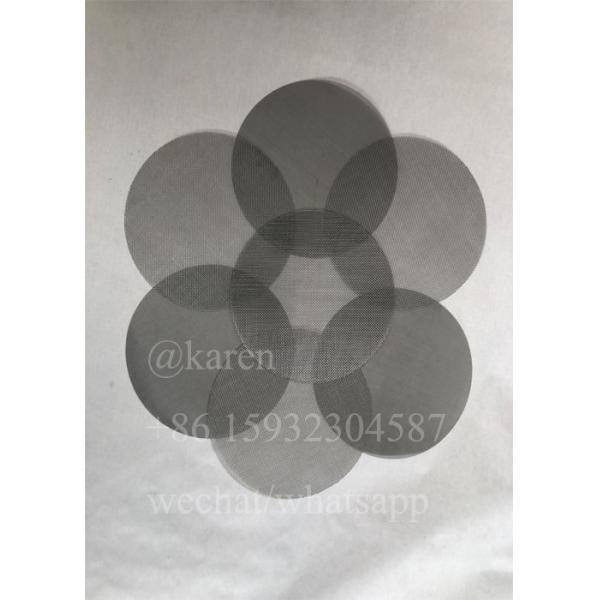

Round shape:
Plain Weave Dutch Weave Screens Filter Mesh Disc For Recycle Plastic Pellets Machine

Oval shape filter screens/filter dics

Plain Weave Dutch Weave Screens Filter Mesh Disc For Recycle Plastic Pellets Machine

we are engaged in manufacturing and supplying a distinguished range of Filter screens/Filter Discs. The offered product is made of anti-corrosive raw materials and progressive technology that can hold up to multiple environments and uses. The offered products are used in plastic melt filtration process and are of true highest quality. Furthermore, we provide these products in various configurations as per the requirements of our clients.


We are factory,so any quantity would be accept.

  • Filter screens/filter Discs::
    • Plain steel, diam. 220mm, 30 mesh (wire 0.30mm).
    • Plain steel, diam. 170mm, 30 mesh (wire 0.30mm).
    • Plain steel, diam. 170mm, 40 mesh (wire 0.25mm).
    • Stainless steel,dia,250mm,12/64 mesh (wire 0.6/0.4mm)
    • stainless steel.dia,250mm,24/110mesh (wire 0.35/0.25mm)
    • 30/150,40/200...

Features of Circular Extruder Screen:

  • Our extruder screens are available in different size, variants and specifications according to precise requirement of customers
  • Our products are highly durable with robust structure
  • We manufacture products by considering international quality standards and it becomes anti-abrasive & anti-corrosive in nature

Application of Extruder Screens:
The major application of Extruder screen is, it keeps away mixing of foreign particles in finally equipped extrusion product and provide a clean and clear extrusion to use.
Circular Extruder Screen are used in various industries as following:

  • Plastic Processing Industry
  • Chemical Industry
  • Rubber Industry
  • Pharmaceutical Industry and many more

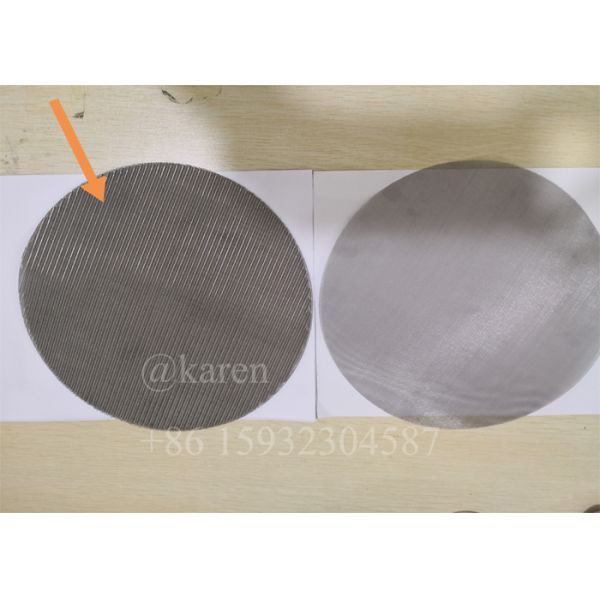

Here is the compare for 80mesh thicker and thinner one:

Plain Weave Dutch Weave Screens Filter Mesh Disc For Recycle Plastic Pellets Machine
